Model : Samsung MFD

Welcome to world of convergence
In a global marketplace where competition is intense, speed of information exchange is critical in determining who holds the competitive advantage.

The integration of telecommunications, computers and internet technology is redefining the principles of communication – a new playing field is evolving.

The best way to improve operating efficiency and productivity in the workplace, is to provide users with ready access to the right mix of tools.

Main Feature:

World’s First - USB Direct Interface

Just use Scan-to-USB to scan and save all that you needed. Scan-to-USB scan and save directly into USB memory thru USB slot Use as N/W scanning in a small office which doesn’t offer N/W environment NO PC NEEDED

AVAILABLE MODELS ::

	SF – 345 TP
	SCX – 4521F
	SCX – 4720 FN
	SCX – 5315 F
	SCX – 6320 F

MODEL NO: -- SF – 345 TP



	Competitive Price Personal Inkjet Fax
	Two Way Speaker Phone
	Answering Machine
	USB Printer

Main Features
	14.4Kbps Modem Speed
	6 Sec Transmission Speed 4 ppm Print Speed
	200x400 dpi Scan Resolution 600x300 dpi Print Resolution
	50 Sheets Paper Capacity 10 Sheets ADF
	10 One-touch Dials
	1.25 MB(100 Pages User Memory)
	80 Speed Dials
	Data Back up 30 Min.

Specifications

Print	Resolution	Up to 600 x 300 dpi effective output
	Speed(Mono)*	Up to 4 ppm in A4
	Speed(Colour)*	N/A
	Emulation	PCL3c
Copy	Resolution	Up to 600 x 300 dpi effective output
	Speed(Mono)*	Up to 3 cpm in A4
	Speed(Colour)*	N/A
	Zoom Range	50 ~ 150 %
	Multi Copy	1 ~ 50 Pages
Scan	Resolution(Optical)	Up to 200 x 200 dpi
	Resolution(Enhanced)	Up to 200 x 400 dpi
	Method	CIS
	Gray Scale	64 Levels
FAX	Modem Speed	14.4 Kbps
	Transmission Speed**	Approx. 6 seconds per page
	Memory	1.25 MB (Approx. 100pages)
	Colour Fax	N/A
	1 Touch Dial	10 Locations
	Speed Dial	80 Locations
	Battery Backup	Max. 30 minutes
Paper Handling	Input Capacity and Types	50-sheets Tray
	Output Capacity and Types	50-sheets Tray
	Media Size	A4 (210 x 297 mm / 8.2" x 11.7"), Letter (216 x 279 mm / 8.5" x 11.0"), Legal (216 x 355 mm / 8.5" x 14.0")
	Media Type	Plain Paper only
	ADF Capacity	10 Sheets (Skew Free)
General	Feature	Fax, Copier, Phone, Printer, TAM
	Weight(net)	3.1 kg (6.83 lbs)
	Weight(with packages)	4.1 kg (9.03 lbs)
	Noise Level***	Less than 55 dBA (Printing) Less than 40 dBA (Standby)
	LCD	1line x 16characters
	Interface	USB 2.0 Full speed
	OS Compatibility	Windows 98/Me/2000/XP
	Input Voltage	USA 110VAC, Europe 220VAC
Consumables	Black Ink Cartridge	INK-M40 : 750 pages @ 4% coverage (Ship with 265 pages Starter Ink Cartridge)
	Colour Ink Cartridge	N/A
	Photo Ink Cartridge	N/A
General	Net Dimension (W x D x H)	368 x 254 x 141mm (14.4" x 10" x 5.5")
General	Packing Dimension (W x D x H)	432 x 370 x 324mm (17" x 14.5" x 12.7")

If you have any query regarding this product, Click Here to send your query.

BACK ON TOP

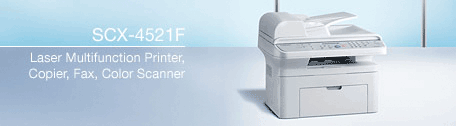

MODEL NO: -- SCX – 4521F

Main Features

Small size. Big results.

Bigger and faster is good, but smaller and faster is better. The compact SCX-4521F is an economical and efficient four-in-one solution for home-based and small office settings. Print sharp text and graphics at speeds up to 20 ppm. Fax fast with 3-second scan and 3-second transmission speeds. Fax directly from your PC. Or copy and scan with distinctly
professional results.

Laser Print

Professional Quality and Speed

High resolution 600 dpi, at speeds up to 20 ppm.

Economical TonerSave™

Our TonerSave™ feature extends cartidge life by
up to 40%, while still producing high quality prints.

Digital Copy

Multiple Modes for Extreme Versatility

ID Card Copy

Copy the front and back of a document on one
side of the page.

Poster Copy

Print out an image at up to 300% of original
size on multiple sheets of paper.

Copy Collation

Automatically collates multiple sets of documents.

Auto-Fit Copy

Fits originals of different sizes onto one letter
size copy.

Clone Copy

Print multiple copies of the same image on the
same page. Handy for things like name tags.

Favorite Copy

Have a custom setting you use all the time? Just
program it in, and it's accessible at the touch
of a button.


Laser Fax

Easy One-Touch Faxing

Store up to 100 locations in auto dial memory.



Convenient Memory Back-Up

If you run out of paper, the 2 MB of built-in memory will store up to 160 pages of letter size documents.

Color Scan

Timesaving Scan to Email

You can automatically attach your scanned image directly to an email on your computer.

Labor-Saving Scan to OCR

Scan documents and convert them to text on your PC automatically.

High Resolution Color Scans

Scan up to 4800 dpi for sharp scans from complex color documents and even 3-D objects.

Samsung Reliability

More than 20 years of design and manufacturing experience has led to document imaging products known throughout the world for their outstanding reliability.

Key Specs

• Up to 20 ppm print and copy speeds

• Up to 600 dpi output resolution

• Compact and convenient flatbed design

• 4800 dpi enhanced color scanning

• 33.6 Kbps fax modem, 3-second transmission

• PowerSave™, PaperSave™, TollSave™ and TonerSave™ efficiency modes

• Copy functions: Auto Fit, Collation, Clone, Poster, ID Card

• 25-400% copy zoom

• Compatible with Windows, Macintosh, Linux

Specifications


Print	Technology	Laser

	Speed 1	Up to 20 ppm

	First Page Out	Less than 11 seconds (from ready)

	Resolution	600 x 600 dpi

	Print Language	SPL(Samsung Printer Language, Host-based printing)

Copy	Speed 2	20 cpm

	Resolution (Optical)	Text mode: 600x600 dpi;Text/Photo mode: 600x300 dpi;Photo mode:600x600 dpi(platen) 600x300 dpi (ADF)

	Resolution (enhanced)	600 x 600 dpi

	First Copy Out	Less than 11 sec. (from ready)

	Reduction/Enlargement	24 to 400%(platen), 25 to 100% (ADF)

	Multiple Copies	1 to 99 copies

Scan	Technology	Color CIS

	Resolution (Optical)	600 x 600 dpi

	Resolution (Enhanced)	4800 x 4800 dpi

	Effective Scan Length	11.7"

	Effective Scan Width	8.2"

	Compatibility	Twain std., WIA std.

	Color Bit Depth	Internal: 24 bit, External: 24 bit

	Black & White Bit Depth	1 bit for Text mode, 8 bit for Gray mode

	Grayscale	256 levels

Fax	Resolution	Max:300x300 dpi; Std:203x98 dpi; Fine:203x196 dpi; Super Fine:300x300 dpi; Photo:203x196 dpi; Color:200x200 dpi

	Modem Speed	33.6 Kbps

	Transmission Speed 3	Approx. 3 sec. per page

	Scan Speed 4	Approx. 3 sec. per page

	Fax Memory	2 MB (about 160 pages)

	Compatibility	ITU-T Group 3, ECM

	Compression Modes	MH, MR,MMR, JPEG

	One Touch Dial	10 locations

	Speed Dial	90 locations

	Phone Line Types	PSTN or PABX

General	Memory	16 MB RAM

	Connectivity	USB 1.1 (compatible with USB 2.0), IEEE 1284 parallel

	Operating System Compatibility	Win98, Me, NT4.0,2000,XP;Mac OS 10.3; Linux OS (via USB interface only) including Red Hat 8.0-9.0; Fedora Core 1 to 3, Mandrake 9.0 to 10.2, and SuSE8.2 to 9.2

	Duty Cycle	Up to 4,200 pages per month

	LCD	2 lines x 16 characters

	Dimensions (WxDxH)	17.2" x 14.7" x 14.5"

	Weight w/ supplies	22.9 lbs. (10.4 kg)

	Warm-Up Time	Less than 35 sec. (from sleep mode)

	Acoustics	Warm up: Less than 49 dBA; Standby: Less than 35 DBA; Printing: Less than 53 dBA; Copying: Less than 55 dBA

	Power Requirements	110 to 127 VAC, 50 to 60 Hz, 4.5 Amps

	Power Consumption	Sleep mode:10 watts (Energy Star Compliant); Standby mode: 55 watts; Avg.:350 watts

	Operating Conditions	Temp. 50 to 89° F (10° to 32° C) Humidity: 20 to 80% RH

Accessories for SCX-4521F

SCX-4521D3/SEE

The Samsung SCX-4521D3 print cartridges are economical cartridges for excellent print value for low-volume users and specifically designed to assure optimal print quality with crisp, dark output from first print to last. The easy-to-install cartridge and advanced toner work with the multi-function printer for cost-effect, reliable operation and sharp, professional results as always.

Product ID: SCX-4521D3/SEE

If you have any query regarding this product, Click Here to send your query.

BACK ON TOP

MODEL NO: -- SCX – 4720 FN

Main Features

The Samsung SCX-4720F is a multifunctional laser printer, digital copier, color scanner and fax with a difference. With Samsung's breakthrough direct USB memory connectivity, you can scan or print directly to or from a USB memory device, without even attaching your computer.

	Now your scanned data is instantly mobile, with digital color scans to go (jpg, bmp, pdf, tiff files supported). Or upload your favorite settings or phonebook data to a portable USB drive and take them with you.

	All you have to do is plug in to get high-quality printouts directly from your USB memory (txt, prn, bmp, tiff files supported).

DIGITAL COPIER

Fast speed

up to 22 pages per minute digital copying

Up to 1,200 dpi

Effective output

25-400%

(platen) zoom range

Multi-copy

up to 99 pages

2-sides-in-1 copy (ID Copy)

2 separate scans combined onto one copy, without any wasted paper

Auto-fit		image resized to fit the printed page

Clone Copy

multiple copies of the same image on one printed page

Poster Copy

one image enlarged up to 300% and printed across up to 9 pages

SmarThru4™

document handling software that allows you to edit scanned images, save them in various formats and set up copy/print formats one click at a time.

DIGITAL NETWORK SCANNER

4,800 x 4,800 dpi

(enhanced) resolution

256-level

grey scale

Optical Character Recognition

(OCR) software scans books and faxes and transforms them into editable rich text.

DIGITAL NETWOK PRINTER

Fast speed

up to 22 pages per minute

Network printing

enabled with an optional network interface card or with an optional wireless network interface

32 MB memory

upgradeable to 160 MB

High capacity

250-sheet paper cassette, expandable to 500 sheets with optional extra cassette

High yield

up to 3,000 pages toner capacity with standard toner or up to 5,000 pages with high-yield toner

Toner save button

reduces toner consumption by up to 40%, so you get more pages per cartridge

FAX

33.6 Kbps

modem speed

4 MB fax memory

approximately 320 pages

40 one-touch dial

and 200 speed dial locations

Toll save button

delays faxes until a later time when rates are lower

KEY SPECIFICATIONS

Print Speed	Up to 22 ppm (Letter paper)
Copy Speed	Up to 22 cpm (Letter paper)
Resolution	Up to 1,200 dpi effective output
Memory	32 MB (Max. 160 MB)
Paper Input	250-sheet cassette

Specifications


Print, Fax, Copy, Scan:		Yes,yes,yes

Print Speed:		Up to 22 ppm

Print Resolution:		Up to 1200 DPI

Print Language:		PCL 6

Connectivity:		USB 2.0 IEEE-1284 Parallel, 10.10 Base TX

Supported OS:		MS Windows 98,Me, 2000, XP, 2000, NT 4.0, Various Linux Systems (via USB only)

Fax Specifications:	Transmission Speed	33.6 Kbps, 3 sec/page
	Scan speed	Platen: Approx. 2 sec;ADF:Approx. 4 secs
	Fax Compatibility, ECM	ITU-T Group 2 ECM
	Coding Method	MH/MR/MMR/JBIG/JPEC
	Storage	16MB Std.
	Quick Dialing	20 speed dial; 40 one-touch

Copy Specifications:	Resolution	Up to 600 x 600 dpi
	Copy Reduction and Enlargement	Platen: 25-400%
	Multi Copies	1-99 Pages

Scanning Specifications:	Resolution(optical enhanced)	Up to 600 x 1200 dpi, up to 4800x4800dpi Flatbed
	Type	Flatbed
	Bit Depth	Color: 36-bit (Internal); 24-bit (External); Black 1-Bit (Text Mode);8-bit (Gray Mode)
	Input Capacity	Std: 250-sheet cassette and 50-sheet audio document feeder(ADF) Optional: 250-sheet second paper cassette
	Output Capacity	150 sheets, 1 sheet (Face-Down, Face-up)
	Automatic Document Feeder	50 sheets

Consumables:	Toner Type	1 Piece integrated Toner and Drum Unit
	Toner Part Number	SCX-4720D3X/XAA
	Toner Yield (@5% coverage)	Approx. 3,000 pages

Net Dimensions:		18.7"(W) x 17.2"(H) x 16.4"(D)

Net Weight:		28.7 Lbs (w/toner cartridge 27.1 Lbs. w/o cartridge

Power Consumption:		300W (Normal), 10W (Powersave)

If you have any query regarding this product, Click Here to send your query.

BACK ON TOP

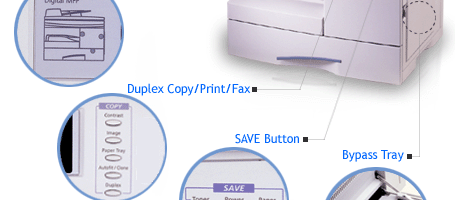

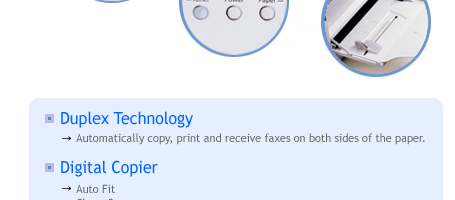

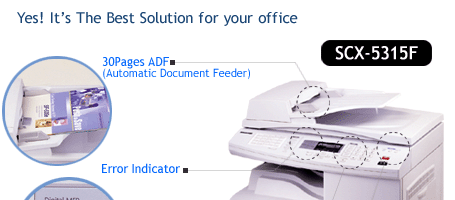

MODEL NO: -- SCX – 5315 F

Main Features

Specifications


Engine	Technology	Laser

Copy	Resolution	1,200dpi class

	Speed	15cpm

	Duplex Copy	Yes (Simplex Scan, Duplex Print)

	Zoom Range	24 ~ 400% (platen), 25 ~ 100%(ADF)

	Copies	1 ~ 999

Print	Resolution	1,200dpi class

	Speed	15ppm

	Duplex Print	Yes

	Printer Language	PCL 6 Emulation

	Interface	IEEE 1284 / USB

	Compatibility	Win 95 / 98 / 2000 / Me / NT4.0 / XP

Fax	Modem Speed	33.6 Kbps

	Transmission Speed	3 sec

	Compatibility	ITU Group3

	Compression Code	MH / MR / MMR / JPEG (for Colour Fax)

	Memory	4 MB (320pages)

	Resolution	300x300dpi

	Rx fax duplex print out	Yes

	Colour Fax	Yes (Sending Only)

	1 Touch Dial	40 locations

	Speed Dial	80 locations

	Battery Backup	Max. 72 Hour

Scan	Resolution (optical)	600x600dpi (Colour & Mono)

	Method	CCD

	Grayscale	256 level

Paper Handling	Type	Cassette

	Input	550 sheet

	Bypass	100 sheet

	ADF Capacity	30 sheet

	Output	250 sheet Face Down

Consumables	Type	2 Piece

	Yield	6,000 pages (Starter Toner @ 6,000 pages)

General	Size(WxDxH)	560x433.9x459mm (22"x17"x18")

	Weight	21.3 kg (46.9lbs)

	LCD	16x2 Char.

Option	Network	Internal Network Card Option

Consumable

Type 2-piece Yield Toner : 6,000 pages @ IDC 5% Coverage Drum : 15,000 Images Model Code SCX-5312D6(Toner) SCX-5315R2(Drum)

If you have any query regarding this product, Click Here to send your query.

BACK ON TOP

MODEL NO: -- SCX – 6320 F

The SAMSUNG SCX-6320F ::: Exceed your expectations with Samsung’s DigitAll Agility.

Agility takes a combination of physical speed, mental quickness, skill and intelligence, and the SCX-6220/6320F delivers it all to you in Duplex Printing with Copy & Networking capabilities for the creation and sharing of documents that is so important to your business communication.

Eye-opening digital functions for copying or printing multi-page documents, scanning images to share, and faxing or emailing with greater ease provide you with the DigitAll Agility to succeed.

Communicate the Samsung way with the enhanced multi-functional laser copier, the SCX-6220/6320F.

Main Features
DIGITAL COPYING
	Functions: Print, Copy, Scan, Fax
	Printing Speed: Up to 22 ppm
	Resolution: Up to 1200 dpi (printing)
	Interface: USB 2.0, IEEE-1284 Parallel, 10/100 Base TX
	Input Capacity: 550 Sheets (Tray), 100 Sheets (MP)
	Output Capacity: 250 Sheets (Face-Down)
	Toner: SCX-6320D8/XAA (Up to 8,000 pgs)
	Compatible Operating Systems: Windows 95/98/Me/NT 4.0/2000/Me/XP, Various Linux OS (via USB only) incl. Red Hat, Caldera, Mandrake, SlackWare, SuSE, and TurboLinux.

Specifications

	Model		SCX-6320F

	Print/Fax/Copy/Scan		Yes/Yes/Yes/Yes
	Print Speed		Up to 22 ppm
	Print Resolution		Up to 1200 dpi
	Print Language		PCL 6
	Connectivity		USB 2.0, IEEE-1284 Parallel, 10/10 Base TX
	Supported OS		Windows 95, 98, Me, 2000, XP, NT 4.0, Various Linux Systems (via USB only) incl. Red Hat, Caldera, Mandrake, Slackware, SuSE, and TurboLinux.

	Fax Specifications
	Transmission Speed		33.6 Kbps
	Scan Speed		ADF: Approx. 1.4 sec/page
	Fax Compatibility, ECM		ITU-T Group 3, ECM
	Coding Method		MH/MR/MMR (ECM Mode)/JBIG
	Storage		16 MB Standard
	Quick Dialing		1-touch dial; 48 Locations Speed Dial; 200 Locations

	Copy Specifications
	Resolution		Up to 600 x 600 dpi
	Copy Reduction and Enlargement		Platen: 25-400%; ADF: 25-100%
	Multi-Copies		1-999 Pages

	Scanning Specifications
	Resolution (Optical, Enhanced)		Up to 600x600 dpi, up to 4800x4800 dpi
	Type		Color CCD
	Bit Depth		Color: 30-bit (Internal); 24-bit (External); Black: 1-Bit (Text Mode); 8-bit (Gray Mode)

	Paper Handling
	Input Capacity		Standard: 550-sheet cassette and 50-sheet auto document feeder (ADF) 100-sheet MP Tray
	Output Capacity		250 Sheets Face-Down
	Automatic Document Feeder		50 Sheets

	Consumables
	Toner Type		2 Piece Cartridge
	Toner Part No.		SCX-6320D8/XAA
	Drum Part No.		SCX-6320R2/XAA
	Toner Yield (@ 5% Coverage)		Approx 8,000 pgs
	Drum Yield (@ 5% Coverage)		Approx 20,000 pgs

	General
	Dimensions (WxDxH)		22.0x17.0x15.6 inches
	Power Consumption		350W (Normal), 35W (Powersave)

Accessories

SCX-6320D8

This model is developed for office environment which requires high resolution print quality and cost saving during the machine life.

Product ID: SCX-6320D8/SEE

SCX-6320R2

The Samsung SCX-6220 print cartridges are economical cartridges for excellent print value for medium & high-volume users and specifically designed to assure optimal print quality with crisp, dark output from first print to last. The easy-to-install cartridge and advanced toner work with the multi-function printer for cost-effect, reliable operation and sharp, professional results as always.

Product ID: SCX-6320R2/SEE

If you have any query regarding this product, Click Here to send your query.

BACK ON TOP
