Simple LocoNet Throttle - SLNTHR

• Stefan hosts thethe information of our SLNTHR-Project (Simple LocoNet THRottle) http://www.nord-com.net/stefan.bormann/dcc/diy/fred/fred_e.html (english) or http://www.nord-com.net/stefan.bormann/dcc/diy/fred/fred_d.html (deutsch)
• Hardware rev 1.0:

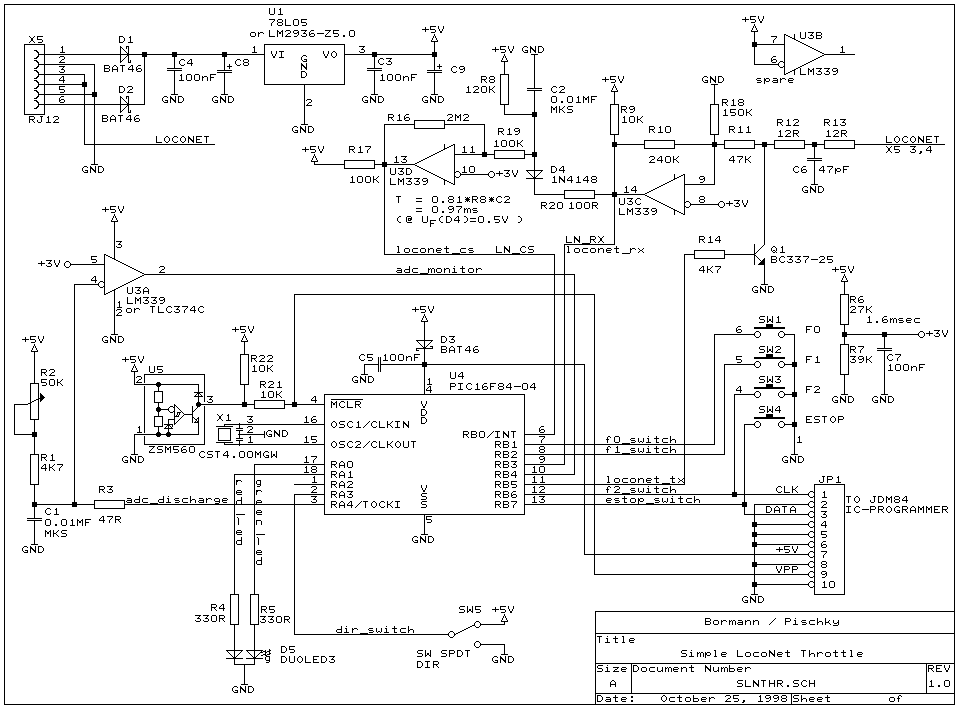

  • Schematic: slnthr10.gif (21k)
  • Layout as EPS: slnthr10.zip
  • Layout (with Drills and Placement) as PDF: slnthr10.pdf
  • Partlist: slnthrp5.htm
• Hardware of older revisions:

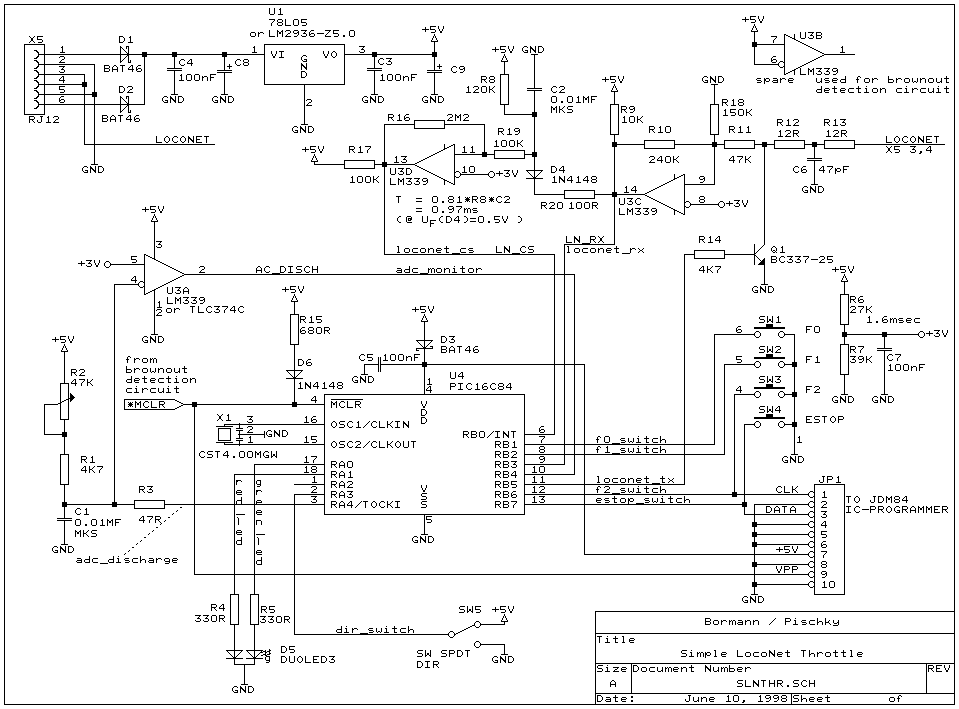

  • Schematic slnthr.gif (18K)
    • Brouwout-Detection-Circuit-1 slnthrb0.gif
    • Brouwout-Detection-Circuit-2 slnthrb1.gif

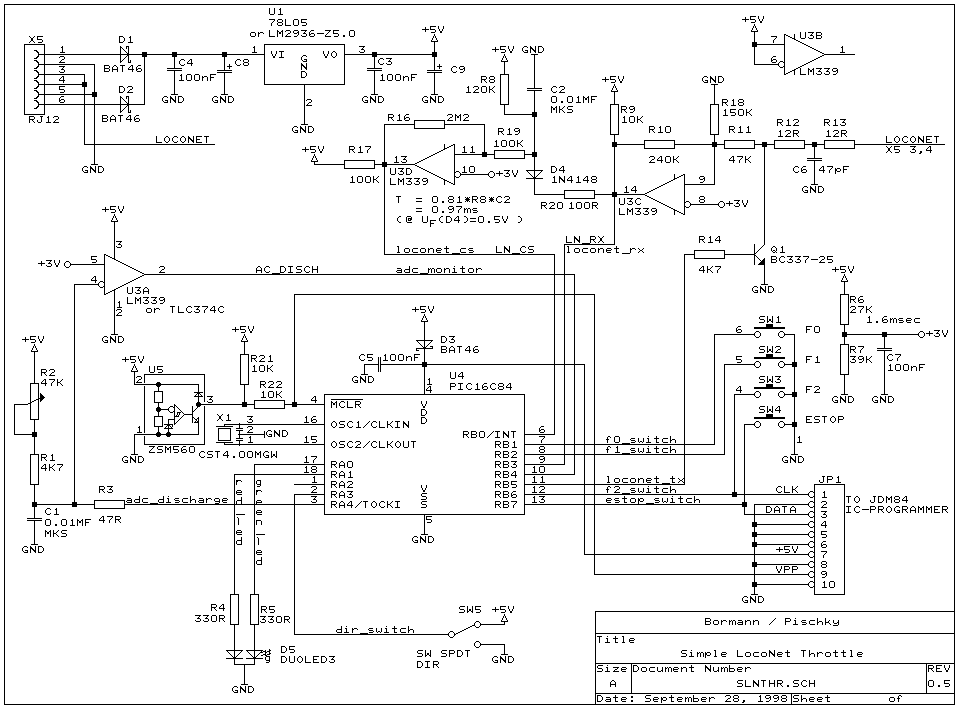

  • REV 0.5 slnthr05.gif (21K)
  • Partlist: SLNTHR - Partlist
  • The PCB as EPS (use GhostScript).
• A draft about the ADC used: SLNTHR - the ADC

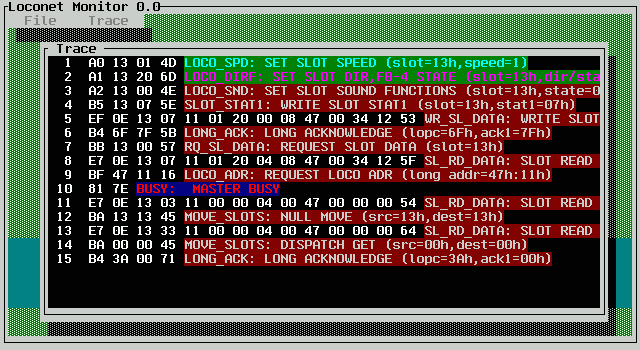

• A first test of ln_send-routine.
• The Throttles build and there IDs, ...
• FCalib - burn your SLNTHR with FRED (req. plain DOS)
  • FCALIB Version 0.5
  • FCALIB Version 0.4
  • FCALIB Manual
• Pictures
  • one FRED of the first series
  • one FRED of the first series (open)
  • one FRED of the first series (open)
  • one FRED of the first series (open)
  • four early FREDs on "FRED-HOLDER"
  • FRED of hardware rev 1.0

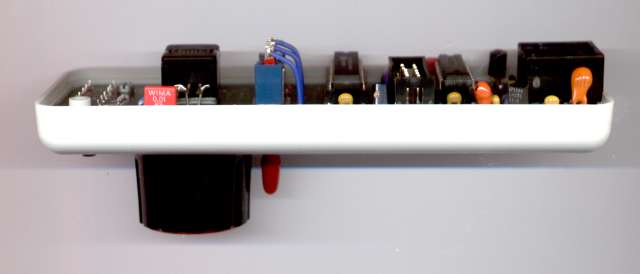

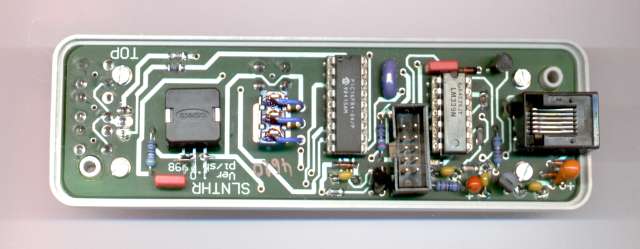

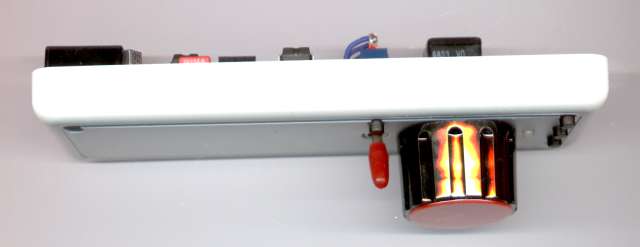

  • FRED of hardware rev 1.0 (open)
  • FRED of hardware rev 1.0 (open)
  • FRED of hardware rev 1.0 (open)

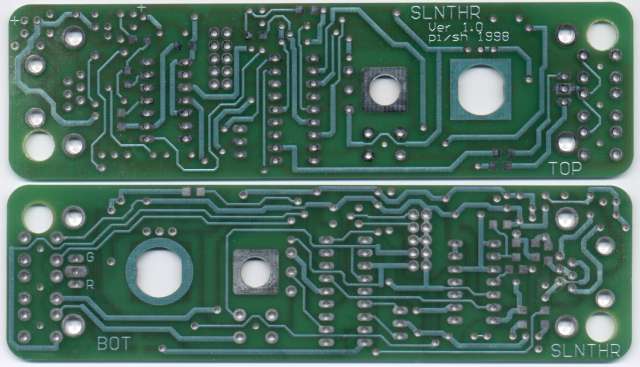

  • The professional made PCB for rev 1.0

© 1998 by Martin Pischky (martin.pischky@al-data.de) [ http://www.geocities.com/CapeCanaveral/Lab/2459/slnthr.htm | creation 19980215 | version 20020330 ]
