In this page we will see together the anatomy of basic computers cooling.
Case cooling ----- CPU cooling .
Case cooling
There is many myths and fantasies about the PC cooling , some people they started to create the myth that PC cooling is an art ..
Well the story is more simple than some people like to believe.
Everything it needs to work right a level of balance , the only need for one metal box to stay cool is to not let the air inside with out motion .
Fresh air in - hot air out , by adding some fans we can solve the mystery , something that not all knows is that in every box we need at list one fan at 80x80 mm to bring fresh air in , and also this will bring the first level of balance in our box .
As you can see I use a lot the fraise level of balance
Yes I do that because this is what is all about
So its simple math , one 80x80 fan is what we got from our power supply ,so we just need another one .
Now if we need a better solution, then we need another two fans ,and not just another one .

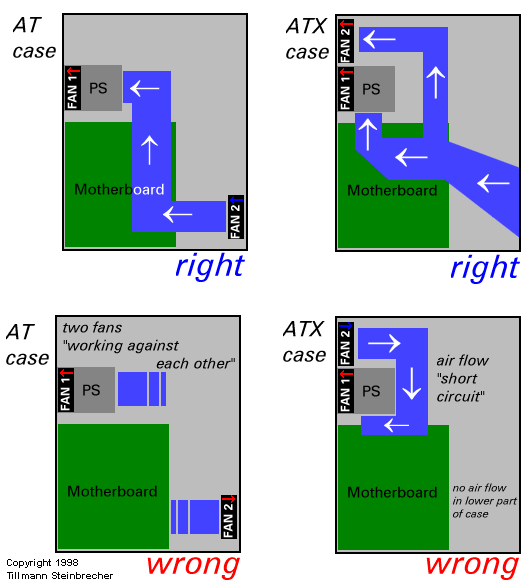

The picture will give you some examples of what is right and what is not .
Web master Kiriakos Triantafillou Volos-GREEC E This site is working since 1998
So I am not the one that I have invent the wheel in Computers cooling methods . This is basic principals that will help the people to understand what is their real needs ,and by this way they will save some money instead of paying money for special coolers that they do not need .
Cpu cooling

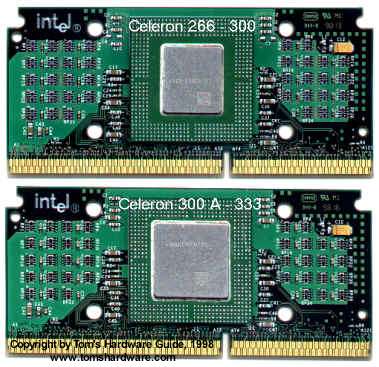

First of all lets see some pictures of the current CPUs and their cores .
All that we need to do is to help the only one Hot spot like the CPU Core
The idea with the classic heat sings, was and is, a very practical way to do the job.
I will repeat again that I am not the one that I have invent the wheel, but I will add my personal opinion that had come from hard tests with all the methods of cooling with exception the water cooling.
1) Heat sings and air-cooling.
There is a race the last 3 years in this area, many little companies that manufacturing heat sings, finally they open their eyes in new designs of CPU coolers that will be more effective that the classic ones.
The Japanese ALPHA company had open the way for many others to enter in this area.
The big question is, does it worth to pay and get a very high tech Coolers this days..
The answer is no.
Why???
Simply because the CPUs of our time (2002) by design they do not produce that much heat, and heat is not our biggest problem with over clocking any more.
Also the modern INTEL CPUs is coming with a huge and very efficient stock heat sings.
The only that I will advice you to do is to add one faster and bigger fan.
The Sanyo Denki produces, fast and also low noise ones.
Copper heatsings
Watch out with them, what shines is not always copper!!
2) How about peltier solutions??
No, stay away from that, the peltier element, will create low temperatures for sure, but your CPU will die for sure too.
The why is very simple, the CPUs its like an engine but it had only two states of operation, like idle and full load.
By using the Peltier, at the idle state the CPU temperature falls even below 0 Celsius, at the full load the temperature with a good peltier and HSF (air cooler) will raise to 25 ~ 30 Celsius.
The fast pass from the one condition to the other , it will kill by the time the CPUs interconnections, with result ,one day it will stop to operate .
I did lost one CPU from the peltier element (PIII-650 Boxed Slot1), and yes I still cry for the loss of one CPU that cost me like 334 $ US or 385 , and the killer was one peltier kit that does not cost more than 52 $ US or 60 .
3) Water cooling.
I never try it, or I will ever do, as the risk is to high the cost is to high, and finally does not worth as practical solution.
4) CPU pastes and thermal pads.
I do not know why but I never trusted the thermal pads that I found in many INTEL stock coolers.
I always take them off, and install high quality white silicone, I did a personal test in some products that claim that contain silver inside and I found that their behaviour is not any better than the high quality white silicon.
I know that most people will think that my words is a bit illogical, well it is not as the praxis had turn down all the myths that some people is supporting specially in the net with main reason to make profits by taking advantage the computer users, 2 Celsius difference, had never save any one, or helped one system to called as more stable one, than another.
Were you can get high quality white silicone??
That was a big problem even for me, I am lucky that I got some, that had come to me with one ALPHA cooler Kit, nice white high quality silicon from Japan.
But it looks that this days the (Arctic Silver 3) product also gives some good results, but it is a little overpriced by my opinion, it can easily found in Greece at the www.Checkmate.gr
Do not get white boxes with out name or brand.
Computers in general, they are not dieing from heat problems , we insisting as users to do the best for our system , but we have to stay in the path of logic too .
