Southern Pacific always had a need for lots of big six-axle power.  The system's characteristics (many mountainous grades and tunnels) led to some unique innovations, most notably the development of the "tunnel motor" modification.  This was applied to SD45T-2 and SD40T-2 models from EMD.

By the time of the merger with Union Pacific, enough locomotives had been rebuilt that it was not always easy to tell what was under the hood.  For instance, many rebuilt SD40-2's were riding around on what had originally been SD45 frames.  Even some Rio Grande SD45's were reincarnated in this way as SP units.  It helps to have a well-researched resource at hand, when spotting the SPL.

On all units purchased after the merger, the headlight arrangement was simplified considerably from the usual SP practice.  The red Mars lights and other signal lights were abandoned (and removed from older units).  None of the newer units even had lights on the low nose, until the AC4400's arrived.  Instead, amber beacons were installed over the cab.  Later, when ditch lights became the norm, the beacons were left off, and sometimes removed from existing units.



SD40's, SD45's

SD40R No. 7349 leads the ZDVRO intermodal train just east of Parachute, CO on 8/11/1999.  It's paired with Rio Grande tunnel motor 5404 as the sole power on this UP train.

The train was flying past at 70 mph, photographed from the shoulder of Interstate 70, so my photos weren't stellar, but what the heck...  Here's a side view.

SP SD40R No. 7368 is the middle unit on a westbound intermodal train at Granite, CO on 10/22/92.
SD40R in Helm Leasing (HLCX) lettering, on the former Golden State Route near Tularosa on 2/18/2008.  This unit seems to have received a new number when it went to Helm-- it's now No. 6335.  If I succeed in tracking down the original SP number, I'll post it here.  Still very cool to see an old EMD running on a mainlilne autorack train in 2008.
SP SD45R No. 7454 heads up ten units and a long manifest train, between New Castle and Glenwood Springs, CO (7/1/1995).  She's showing her age and the wear-and-tear of heavy use with inadequate maintenance.
UPDATED SD45R No. 7552 leads a drag freight westbound out of Tucson on 3/13/1995.
SP SD45R No. 7562 is still in Kodachrome paint from the Merger That Never Happened.  It's 11/25/1994 and she's running second on a coal train about to enter the Moffat Tunnel.
UPDATED  SP 8605 is actually a SD40M-2 rebuild from Morrison-Knudsen, delivered in 1994.  She only looks like an SD45.
UPDATEDSP SD40M-2 No. 8694, another MK rebuild from August 1994, is one of the stranger-looking locomotives I've seen (check out the location of the radiator fans, and the length of the long hood).  It is one of six former SDP45 (or SD45R, if you prefer) units originally built for the EL.  It's at Silt, CO on 8/04/1998.  See here for more information.



Something new: a trio of SD70M's (Nos. 9809, 9805, 9816) lead an eastbound coal train down from the Moffat Tunnel on 11/22/94.  SPL ordered 24 of these units, the last 6-axle locos to come from EMD before the UP merger.
Tunnel Motors: SD40T-2 and SD45T-2
SD40T-2 No. 8236 is running elephant-style behind three GP60's on the Golden State route on June 25, 1997.  The westbound train is just entering Alamogordo, NM, and it's 9 months after the UP merger.
SP No. 8248 is in the middle of the consist of an eastbound train leaving Tucson on Feb. 5th, 1988.  It was part of an order that arrived in 1980, as are the units above and below.
SD40T-2 No. 8264 is third on a westbound intermodal at Granite, CO on 10/22/1992.  This image is a detail from a larger image-- I didn't have a zoom lens back then...

Update: this unit was a full UP repaint, and I caught it in Houston on 10/17/2007 as UP No. 2397 (almost exactly 15 years after this photo).

Snoot No. 8321 is westbound at Cotopaxi, CO on 8/17/96, three weeks before the UP merger.

SD40T-2 Snoot No. 8355 is helping out with the Ski Train on 2/19/1994.  It's proof that fresh paint does not a reliable locomotive make.  She stalled near tunnel 12 (note the puffs of smoke from the stack).  As a result, the GP40M on the point is pulling the whole train, plus the dead 8355, so we're making barely 5 mph on the 2% grade.  After limping into Crescent siding a couple of miles ahead, we were met by two speed-lettered units cut from a train up at Pinecliffe, which assisted us the rest of the way to Winter Park.  Interesting day.  Yes, the train was a bit late that day...
SD40T-2 No. 8491 is running fourth on a westbound manifest at Johnson Village, CO On 2/18/1994.  It's been repainted into Speed Lettering and had the usual modifications.  Also note the nose of SD45R No. 7557, a Kodachrome unit.  You can see where the signal light and upper headlights were removed, and a beacon added.  No ditch lights at this time for her, though.
NEW  SD40T-2 No. 8495 is the trailing unit on a westbound drag freight at north Tucson, March 13, 1995.  She's been repainted and modified in the usual ways.  The bell is still over the cab, though (see this photo).

Two views of SD40T-2 No. 8496, here leading a westbound intermodal train at Granite, CO, on the Central Corridor route.  These are cropped from larger images.

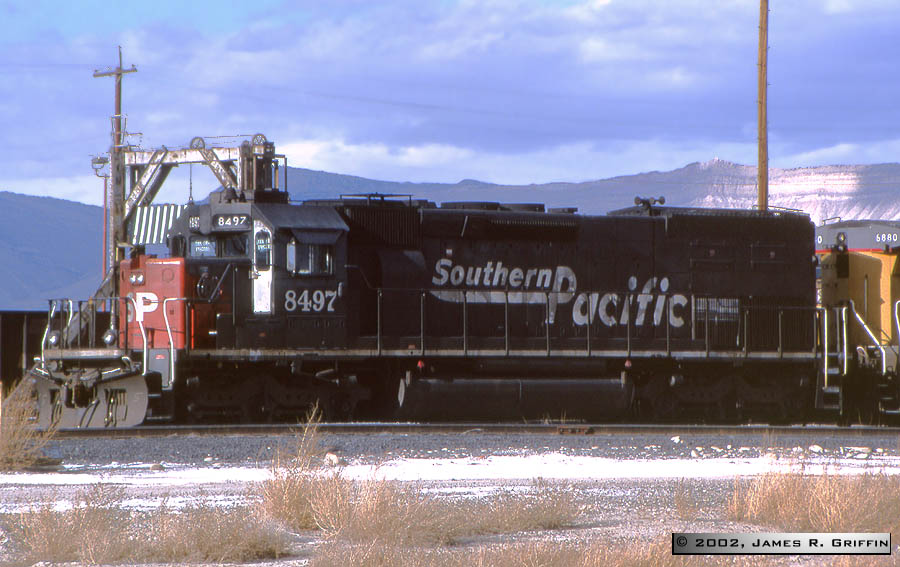

SD40T-2 No. 8497 sits on the readyline at Grand Junction on March 7, 2002.  It has the usual Speed Lettering modifications, including SP-style ditch lights and relocation of the horn.  The low nose plainly shows the original SP light bracket.
NEW:  Here's an extract from a larger image of SD40T-2 No. 8506, entering Tucson on 2/05/1988.  Sorry about the power pole.  Note that she still sports the full light package.  It was still about eight months until the RGI merger would be finalized.
No. 8519 is on the point of a dead manifest train in the siding at Silt, CO on 8/04/1998.  The paint is pretty far gone on this unit...
SD40T-2 No. 8532 is running fourth on the MDVPU manifest on April 26, 2001.  It's rolling through Sedalia, CO, at about 5:00 PM.  It's in the company of three D&RGW tunnel motors; all four units are having miles worked off so they can be retired sooner by UP.  Nevertheless, it was great to see four tunnel motors together in 2001.
UPDATED   SD40T-2 No. 8550 is westbound on the Moffat on Christmas Eve, 1988.  She's surrounded by four D&RGW GP40-class units as she emerges from tunnel 1.  It's only about 3 months since the merger, and she's still in SP configuration.  I compensated the photo a little bit for the shadow...
SD40T-2 No. 8560 heads up a westbound empty coal train at the east portal of Moffat Tunnel on 11/25/1994.  It's freshly shopped and repainted (sparkling clean).  In a somewhat-unusual move, the hole where the nose beacon was removed has been plated over.
SSW SD45T-2 No. 9164 comes into Tucson from the east on 2/05/1988.  The two quickest ways to differentiate between a 40 and a 45 are: (1) the 45's nose is pushed out onto the front porch, and (2) those little panels above the open grille on the rear.  The 45 has three; the 40 has two.
SD45T-2 No. 9362 is the last unit on a four-place swing helper, shoving an eastbound coal train out of Glenwood Springs on 6/29/1995.  It has been repainted in Speed Lettering, so technically this SSW unit is now SP.  The next unit ahead is an SP SD40R, then D&RGW tunnel motor No. 5366 (making all the smoke), then Rio Grande SD50 No. 5515.  It looks great on video, believe me!
Cotton Belt SD45T-2 No. 9372 is on the point of Amtrak No. 5, the California Zephyr, on March 14, 1993.  The train is several hours late, which may be why this six-axle brute is leading it up the hill.  Power shortage?
One of my all-time favorite photos is of SD45T-2 No. 9398, running light in the fog at tunnel 1 on the Moffat line.  It's also a full repaint in Speed Lettering.  The date is 7/20/1994.
UPDATED  This image, a detail from a larger frame, shows a pair of SD45T-2's in Fraser, CO.  No. 9401 is a Cotton Belt unit that's been redone in Speed Lettering (including having the horns moved and ditch lights added).  The other unit, whose number I can't make out, is actually an SP SD45T-2R, one of a group rebuilt from the as-delivered SD45T-2's circa 1988.  (I have it on video; I'll review and post an update here soon.)
