Launch Ramp Pyramid |
I've listed the materials, because on some of the pics it's hard to read em. My list might not be exactly right either, cuz they are pretty hard to read...There are more ramp plans to come... |

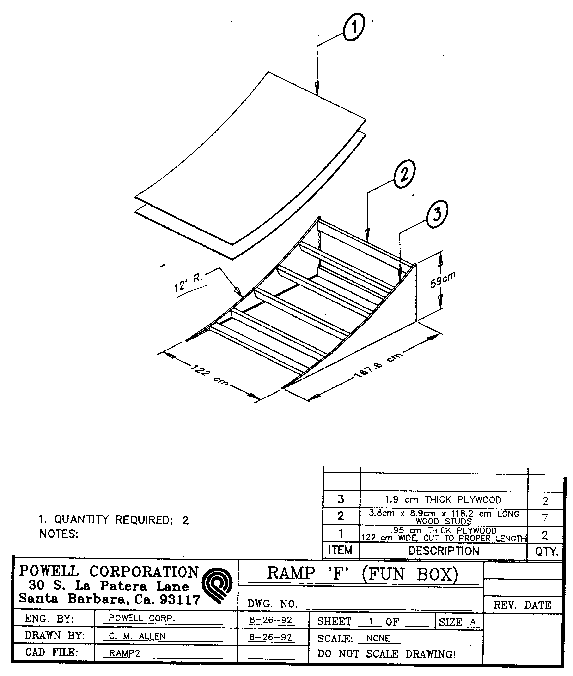

Launch RampMaterials:3. 1.9cm Thick Plywood (2) 2. .95 Thick Plywood, 127 cm wide (2) 1. 3.8cm X 8.9cm X 116.2cm Long Wood Studs (7) |
 click to enlarge |

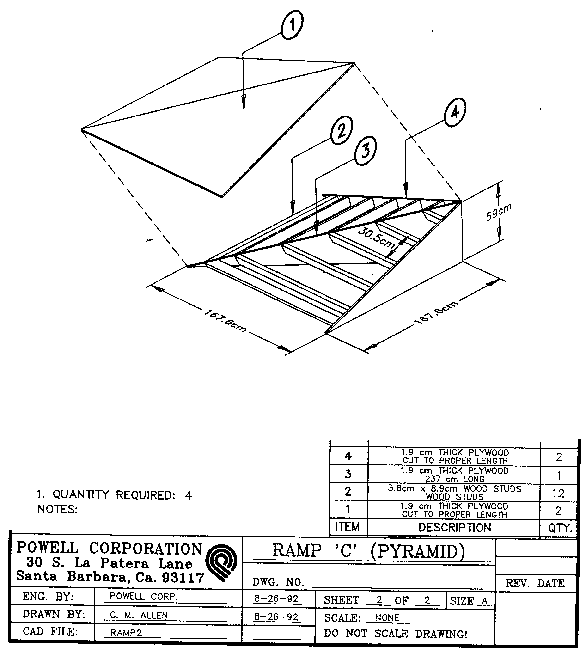

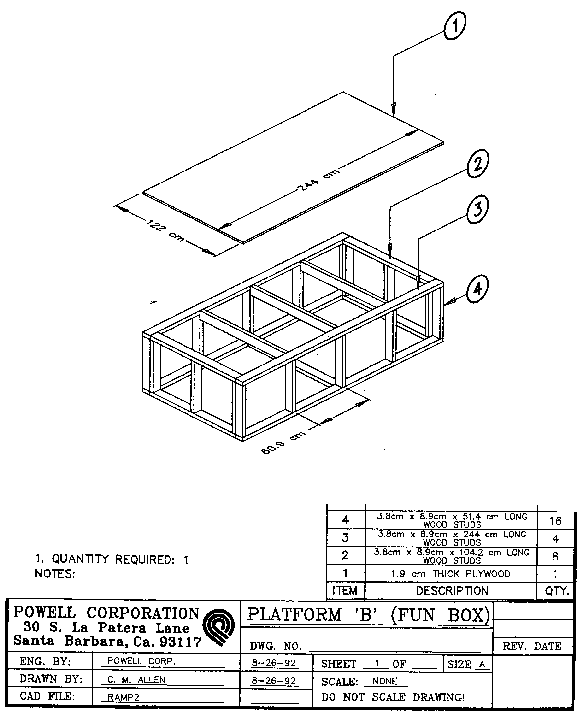

PyramidMaterials:Part A 3. 1.9cm Thick Plywood (2) 2. 3.8cm X 8.9cm X 116.2cm Long Wood Studs (8) 1. 1.9cm Thick Plywood (1) Part B 4. 3.8 X 8.9 X 51.4cm Long Wood Studs (16) 3. 3.8 X 8.9 X 244cm Long Wood Studs (4) 2. 3.8 X 8.9 X 104.2cm Long Wood Studs (6) 1. 1.9cm Thick Plywood (1) Part C 4. 1.9cm Thick Plywood, Cut to Proper Length (2) 3. 1.9cm Thick Plywood, 237cm Long (1) 2. 3.8 X 8.9cm Long Wood Studs (12) 1. 1.9cm Thick Plywood, Cut to Proper Length (2) |
 click to enlarge
|
