Preferred Track Layout for Our New Station

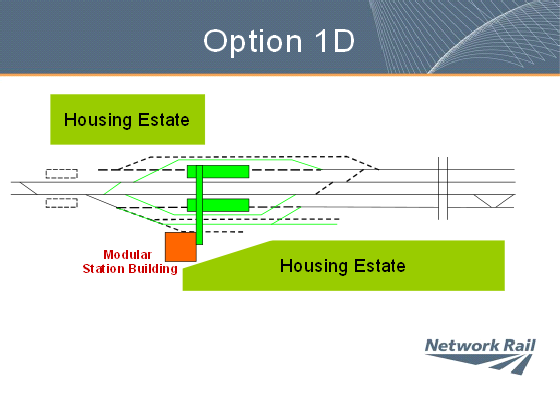

This shows the preferred station layout for Bromsgrove’s new station. It will comprise two island platforms (shown in light green) with a connecting foot bridge. The two existing high speed running lines run through between the two platforms.  There will be two new lines for stopping trains shown in green. These will be new lines. The dotted lines show existing rails that will be lifted. The new line between the stopping line and the station building will be the Goods Loop.
