Introduction

The IBackProjectorRenderer interface

The IBackprojector interface as of writing (please remember that this is an alpha release and is subjected to major changes in the future) consists of three simple functions.

interface IBackProjectorRenderer : public IUnknown
    {
    public:
        virtual HRESULT STDMETHODCALLTYPE BackProjectPhantom(
            /* [in] */ IBackProjector *pIBackProjector,
            /* [in] */ IPhantom *pIPhantom,
            /* [in] */ IVolume *pIVolume) = 0;

        virtual HRESULT STDMETHODCALLTYPE BackProjectProjection(
            /* [in] */ IBackProjector *pIBackProjector,
            /* [in] */ IProjection *pIProjection,
            /* [in] */ IVolume*pIVolume) = 0;

        virtual HRESULT STDMETHODCALLTYPE BackProjectProjectionCollection(
            /* [in] */ IBackProjector *pIBackProjector,
            /* [in] */ IProjectionCollection *pIProjectionCollection,
            /* [in] */ IVolume *pIVolume) = 0;
    };

The first function, BackProjectPhantom, while defined is not currently supported so for the moment just ignore it.

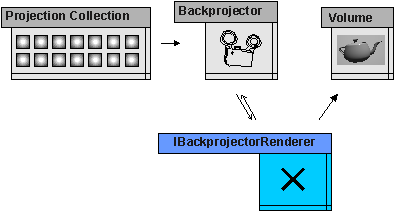

The second function, BackProjectProjection, is called by a Backprojector to render into a Volume, as passed as IVolume interface pointer, a single Projection.
If your backprojection method is smart enough to speed up backprojection by exploiting groupal properties, ignore BackProjectProjection and implement only BackProjectProjectionCollection. This function asks for the backprojection of the entire collection of projections.


The IBackProjector interface

interface IBackProjector : public IUnknown
    {
    public:
        virtual HRESULT STDMETHODCALLTYPE SetComputation(
            /* [in] */ int ComputationSteps,
            /* [in] */ const BSTR DisplayStringWhileComputing) = 0;

        virtual HRESULT STDMETHODCALLTYPE StepComputation( void) = 0;
    };

These two methods are used by Strange Engine to display messages in the Backprojector status bar while the rendering is progressing. Moreover by calling the SetComputation/StepComputation pair you makes also possible for Strange Engine to compute rendering times which are reported at the end of the computation.


The IVolume interface

interface IVolume : public IUnknown
    {
    public:
        virtual HRESULT STDMETHODCALLTYPE GetVoxelGeometry(
            /* [out] */ float *DimX,
            /* [out] */ float *DimY,
            /* [out] */ float *DimZ,
            /* [out] */ float *MinX,
            /* [out] */ float *MinY,
            /* [out] */ float *MinZ,
            /* [out] */ float *MaxX,
            /* [out] */ float *MaxY,
            /* [out] */ float *MaxZ,
            /* [out] */ float *StepX,
            /* [out] */ float *StepY,
            /* [out] */ float *StepZ,
            /* [out] */ int  *NumX,
            /* [out] */ int  *NumY,
            /* [out] */ int  *NumZ) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetDataPointer(
            /* [out] */ float *pData) = 0;
    };

The GetVoxelGeometry method is used by the IBackProjectorRenderer implementer to get information about the volume geometry.
GetDataPointer returns a linear float* pointer in which to write calculated voxel values.


The IProjection and IProjectionCollection interfaces

interface IProjectionCollection : public IUnknown
    {
    public:
        virtual HRESULT STDMETHODCALLTYPE GetHomogeneity(
            /* [out] */ BOOL *IsHomogeneous) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetCount(
            /* [out] */ int *pProjectionCount) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetAt(
            /* [in] */ int Position,
            /* [out] */ IListElementStub *pIListElementStub) = 0;
    };

IsHomogeneous checks if the given collection is made of similar (i.e. with same dimensions and pixel number) projections. As of now returns always TRUE.
GetCount returns the number of projections, while GetAt returns a Stub interface to the projection in the given Position.
Stub interfaces are used to load and offload projections from memory.

interface IListElementStub : public IUnknown
    {
    public:
        virtual HRESULT STDMETHODCALLTYPE Load( void) = 0;

        virtual HRESULT STDMETHODCALLTYPE OffLoad( void) = 0;
    };

Call Load before using the projection and OffLoad after you have done processing it (so Strange Engine can free some memory). You can get a IProjection pointer by QueryInterface on the IListElementStub interface.

interface IProjection : public IUnknown
    {
    public:
        virtual HRESULT STDMETHODCALLTYPE GetRasterGeometry(
            /* [out] */ float *DimX,
            /* [out] */ float *DimY,
            /* [out] */ float *MinX,
            /* [out] */ float *MinY,
            /* [out] */ float *MaxX,
            /* [out] */ float *MaxY,
            /* [out] */ float *StepX,
            /* [out] */ float *StepY,
            /* [out] */ int *NumX,
            /* [out] */ int *NumY) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetSourcePosition(
            /* [out] */ float *x,
            /* [out] */ float *y,
            /* [out] */ float *z) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetDetectorCenterPosition(
            /* [out] */ float *x,
            /* [out] */ float *y,
            /* [out] */ float *z) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetDetectorTrajectoryMatrix(
            /* [out] */ double m[ 16 ]) = 0;

        virtual HRESULT STDMETHODCALLTYPE GetDataPointer(
            /* [out] */ float *pData) = 0;
    };

All methods should be self-explaining. The 4 x 4 matrix provided by GetDetectorTrajectoryMatrix describes the matrix used by the system to generate the trajectory of the detector. Please note that currently Strange Engine generates ONLY trajectories of kind circle-on-xz. In the future interface changes to support more elaborate trajectories are very likely.


Property Pages

A word about CATIDs

The FDK example
