Any mathematician would frown after reading both statements. The Egyptians
could have made the pyramid adjusting its proportions to pi, or phi, but
not both numbers at the same time!
Let's make a few calculations to see this. The height, the slant height
and half the side make a right triangle (see the diagram). If the second
statement is true, using the Pythagorean theorem we can calculate that
the height of the pyramid:
height = side x square root of phi /2 ( H=S sqr(phi)/2
)
Now, if the first statement is true at the same time, we would have:
2piS sqr(phi)/2=4S
pi sqr(phi)=4
In short, a mathematical relation between pi and phi, when there isn't
any (at least, not so simple).
But the author of the booklet showed the measures of the Great Pyramid
to prove his point, and the calculations seemed convincing. The four sides
of the base aren't exactly equal, although the differences are so small
that they have puzzled archeologists for many years. The average of the
sides is 230.363 meters. The exact height is more difficult to calculate,
because the point of the pyramid was lost. An estimation that is accepted
by most archeologists is 146.595 meters. I've checked that both numbers
are correct.
Now, let's suppose that the Egyptians built the pyramid using phi in
their calculations. It sounds most likely, because phi is easy to obtain
geometrically, and we know for sure that the Greeks used it deliberately
in their temples and sculptures. We can use the formula of the second statement
the other way round, to obtain the approximate value of phi they used,
knowing the height of the pyramid and the length of its sides. This value
for phi is 1.6198..., while the true value is 1.6180... As you can see,
it's a very small error, less than two thousandths.
What happens if we suppose that they built the pyramid using pi? The
formula of the first statement gives an approximate value for pi of
3.1428..., while the true value is 3.1416... Again, the error is less than
two thousandths. This is even more remarkable if we know that in Egyptian
texts
they used this approximate formula to calculate the area of a circle, using
its diameter (D):
A=(D-D/9)^2
This is equivalent to considering pi equal to (16/9)^2=3.16..., a value
that's far more inaccurate.
Perhaps this approximation of pi (3.1428...) reminds you of something.
In fact, it's the exact value for one of the best rational approximations
of pi, 22/7. Did the Egyptians know this value, or did the archeologists
that calculated the height of the pyramid use it? It's impossible to know,
but let me add an intriguing fact. If we use the false relation between
pi and phi to obtain an approximate value for pi using phi, we get 3.1446...,
which is a worse approximation than 3.1428... It looks like the pyramid
was built trying to get as close as possible to both numbers.
This approximate relation between two of the most interesting irrational
numbers awoke my curiosity. Is there any geometric construction that could

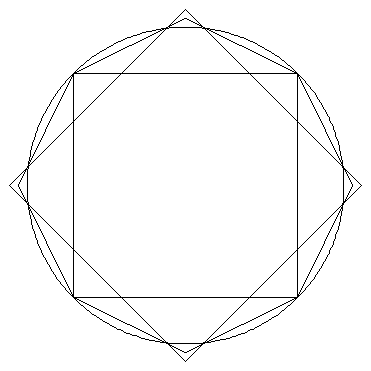

explain it? I think there is, and I've called my discovery "the golden
octogon" (see the figure to the left). You can build it from a square whose
side is equal to the square root of 2phi. From the corners of the square,
draw straight lines making an angle of 25.91 degrees. This angle is exactly
the half of the angle that make the faces of the pyramid with the ground,
or in other words, half the angle of the golden right triangle (jump to
the section on the golden mean and the Great Pyramid
for an explanation of what the golden right triangle is).
The golden octogon isn't regular, because its angles aren't equal, but its sides are all equal to 1. A circle of radius equal to the square root of phi, with the same center as the octogon, is surprisingly close in length and area to the golden octogon. If we draw a square of side 2, it will cut the circle in the same points as the golden octogon. Note that if this square was the base of the pyramid, the height of the pyramid would be the radius of the circle. We could say that this diagram represents the squaring of the circle according to the Great Pyramid. |
The golden mean and the Great Pyramid
Phi is a number with several names, all of them quite poetic and usually
referring to gold: golden mean, golden ratio, divine proportion... It was
well known in antiquity, and it was called phi because the Greek sculptor
Phidias used it constantly in his sculptures. Phi represents a proportion
that's considered particularly harmonious. You will obtain it when you
divide a line in two parts in such a way that the proportion between the
greatest and the smallest part is the same as the proportion between the
whole line and the greatest part. Phi appears naturally in many proportions
of the human body, as it was studied by Leonardo da Vinci.
A rectangle whose sides are 1 and phi is called a golden rectangle,
and it has an interesting property: if you cut a square from it, the remaining
rectangle keeps the same proportions. You can keep cutting squares from
the remaining rectangles, and you'll get a figure called a whirling square.
You can see a drawing based on this on this page.
Phi introduces many interesting relations between the different elements
of the pyramid. I've already mentioned one: the proportion between the
slant height and the side of the base is phi/2 (Sh/S=phi/2). In fact, the
height, the slant height and half the side make a right triangle of interesting
proportions, called a golden right triangle. Its sides are proportional
to 1, phi and the square root of phi. The proportion between the slant
height and the height is the same as the proportion between the height
and the half the side.
slant height/height = height/(side/2) ( Sh/H=H/(S/2)
)
A perpendicular line to one of the faces of the pyramid passing through
the center of the base will divide the slant height according to the divine
proportion. This perpendicular line allows me to talk about another interesting
property, that perhaps I wouldn't mention if historians didn't tell us
that the Egyptians used to build right triangles from the length of its
sides. A triangle whose sides are the perpendicular, half the side of the
base and the height is also a right triangle, and with the proportions
of a golden right triangle. The golden right triangle is the only one with
this property.
Phi appears naturally in all the regular figures with five-fold symmetry,
like pentagons, decagons, pentagrams (five-pointed stars), dodecahedrons
and icosahedrons. In many ancient cultures this kind of figures were considered
sacred, because they represented at the same time the human being (the
number five represents the hand), and perfection, because of its regularity.
I'll say only a couple of relations between these figures and the pyramid,
but it's easy to find many more.
Let's inscribe a circle in the base of the pyramid, inside this circle,
a pentagon, and inside this pentagon, another circle. The diameter of this
second circle is equal to the slant height of the pyramid.
If we build an icosahedron whose edge is equal to half the side of
the base, the distance between two opposite vertices is equal to the edge
of the pyramid, and the distance between any other two vertices is equal
to the slant height.
